Charging power up to 22 kW for fast and efficient AC charging

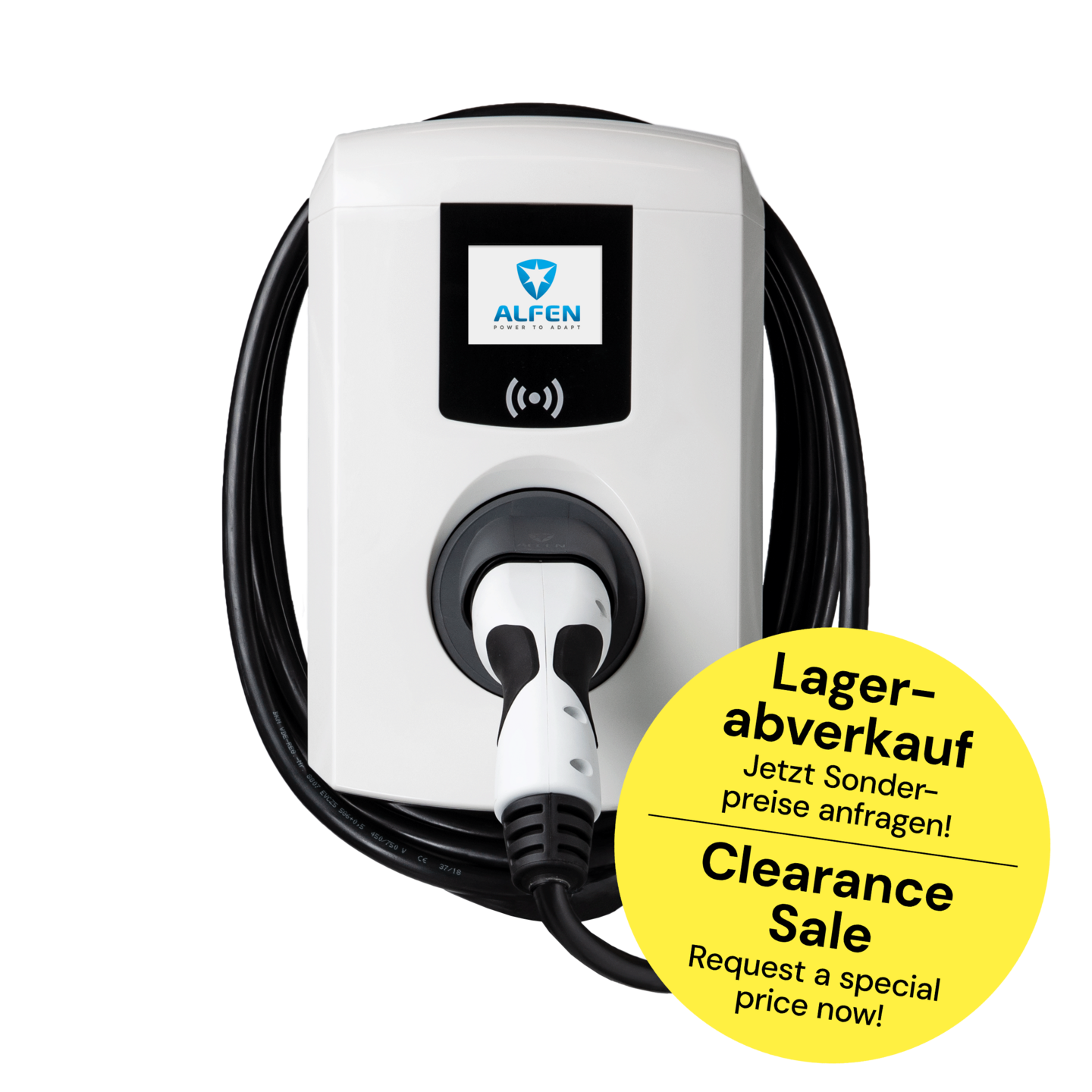

Alfen Eve Single Plus
Smart charging station (AC) for reliable charging up to 22 kW
The Alfen Eve Single Plus is a high-quality AC charging solution for residential, commercial and public use. With a charging power of up to 22 kW, smart connectivity and flexible authentication options, it offers a future-proof charging infrastructure for modern electric vehicles. The charging station is available in a version that complies with German Calibration Law (Eichrecht).
Details and technical data
- Maximum output power: up to 22 kW
- Grid connection: 3P + N + PE (400 V) or 1P + N + PE (230 V)
- Dimensions: 373 × 242 × 181 mm (H × W × D)
- Mounting: wall mounted or floor standing using a pedestal
- Connector type: Type 2 socket or fixed charging cable
- Residual current detection: Type A 30 mA + DC 6 mA
- Recommended protection: max. 40 A + RCD Type A 30 mA
- Connectivity: LTE/4G, Wi-Fi and Ethernet
- Authentication methods: RFID, Autocharge and Plug & Charge
- Status indication and operation: 3,5" IPS color display
- User interface: display
- Vehicle communication: Mode 3 in accordance with IEC 61851-1 ed. 3 (2017), ISO 15118 hardware ready
- Options: compliant to the German Calibration Law (Eichrecht) and AFIR-compliant
- Ingress protection: IP55
- Impact protection: IK10
- Communication protocols: OCPP 1.6J, future expansion to OCPP 2.0.1
- Safety standards: IEC 61851-1 ed. 3 (2017)
- Max. connection cross-section: up to 10 mm²
- Load management: static or dynamic
- Additional features:
• Personalized display (optional)
• Smart Charging Network
• Dynamic QR codes can be displayed
